Potato starch production plant

The whole potato starch production plant description:

potato starch production plant

Potato washing & crushing section

Washing &Crushing Section

potato, the material is sent to cage washer through scrape board to get the result of decontamination, cleaning and peeling . Then through a paddle-washing slot,material is sent to crash section.We adopt the rasper to crash materials. Compared with traditional crasher, it has the large capacity, high starch dissociation degree features, which are essential to get high starch recovery.

potato starch production plant

Milling and grinding section

Milling and grinding section during the potato starch production plant

Grinding clean potato root into cassava slurry to make it easy dewatering and drying.
potato starch production plant
Concentrating section

Concentrating Section

The crashed material is sent to centrifugal sieve through pump to extract starch and separate potato residues.Centrifugal sieve group are 4 or 5 stages, the front stages is to extract starch and the last stage is to dewater the potato  residues. The whole stage adopts countercurrent washing to get the best results and saving water.
potato starch production plant

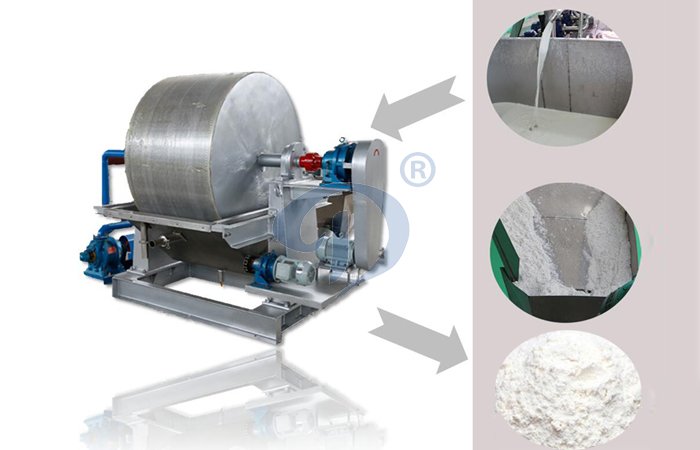

De-hydrating machine

De-hydrating section during the potato starch production plant

Sending the fine slurry to dewatering machine to remove the moisture inside the slurry, and then send it to the air dryer.

Compared with other starch, it is more suitable for potato starch to dewater by vacuum filter. Moisture content of dewatered starch is 38~40%. Wet starch is sent to drying system through belt conveyer.

potato starch production plant

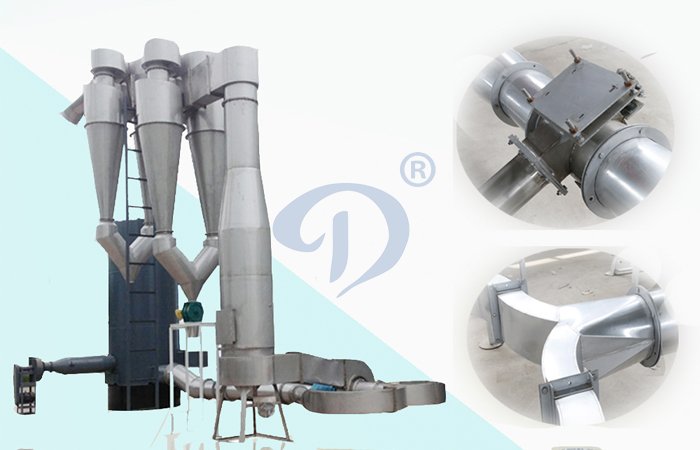

Starch drying machine

Drying section

Drying the dewatered cassava flour in the air dryer to get dry product.Dried starch reaches sieving system.High efficiency cooling starch sifter is used to cool starch and get the best starch.

potato starch production plant

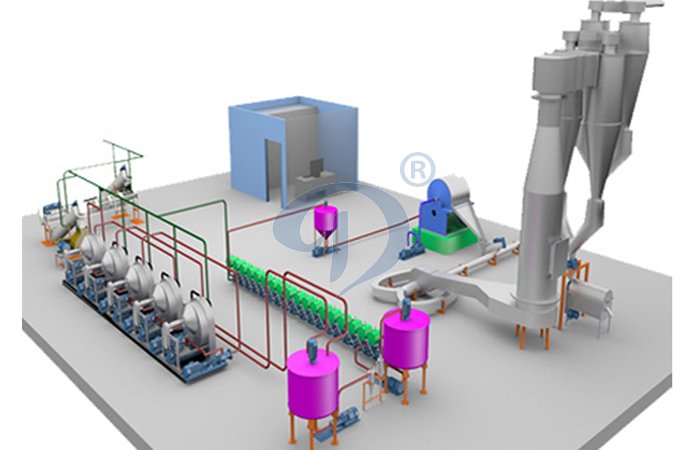

Potato starch production plant

Various technical parameters and main equipment of potato starch production plant

ITEM

Name and model

unit

Quantity

Power

First

Clean machine







1

Water power convey groove







2

Cleaning machine Ⅰ

set

1

3

3

Cleaning machine Ⅱ

Set

1

1.5

4

Potato cleaning convey machine

set

1

3

Second

Extraction and refining section







1

extrusion-milling machine
(making powder )

Set

1

30

2

Fine filter (latex)

Set

2

3

3

Starch micro-filtration machine

Set

1

1

4

Desanding machine

Set

1

3

5

Refined starch concentration system

Group

11

66.5

6

Automatic vacuum dryer

set

1

14

7

Conveyor

set

1

3

8

Interim tank







Third

Dry section







1

Air dryer

Set

1

28

2

Radiator

Set

1



3

Starch screen

Set

1



4

Distribution Cabinet

Set

1



5

A ton of boiler

Set

1



Fourth

Aid machine







1

Power line







2

Packing machine



1



3

Pipelined and pump/motor







4

Non-standard parts and other materials
