Yam flour production process

Yam is the most common crop in developing countries in the tropics, especially in some African countries. Yam is used for processing feed and yam flour. It can be used to produce sugar, alcohol, monosodium glutamate, beer, bread, vermicelli, sauce and many other products. Yam has not received enough attention in the past, but now it should play a greater role in promoting economic transformation. The African government's emphasis on the yam industry chain will bring a series of preferential policies to run factories so as to promote agricultural restructuring and economic restructuring.

When it comes to the yam flour production process, the yam flour production process industry in China began in the 50s of the last century. After decades of development, the traditional workshops have been fully mechanized. The development of industry is improving the employment rate and promoting the development of agricultural economy.

yam flour production process

Yam flour production process

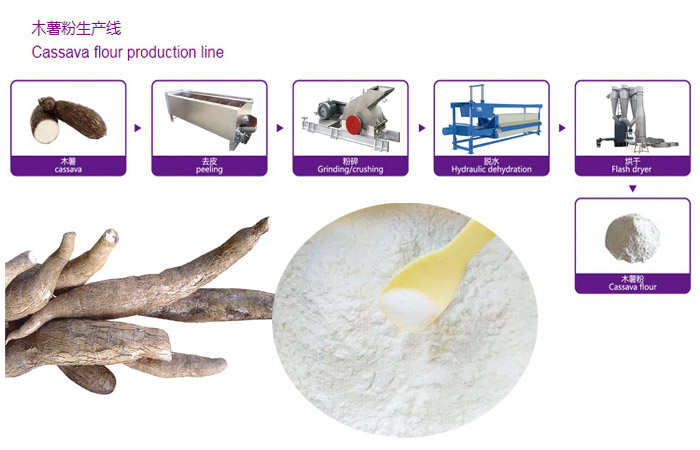

The whole yam flour production process is comprised of six major sections: Cleaning &Washing Sections, Peeling Section, Crushing and Milling Sections, De-sanding and De-watering sections, Drying section, Packing Section. DOING has its own factory and entire high extraction yam flour production process, so we can offer you the best service, production and competitive price of yam flour production process

The first step is cleaning and washing section: Dry sieve can effectively remove dirt, sand and small stones, it has the ability to avoid sewage disposal. According to multiple spiral operation, paddle washing machine can remove silts and impurities from the surface of yam. At the same time, the outer peel of yam will be simply handed by these two machines. This section also can be performed manually. The section is the very beginning step of yam flour production process.

yam flour production process

Yam flour production process



The second step is peeling , yam peeling machine’s main component is a peeling chamber. In order to remove the peel of yam and reduce the difficulty of grinding, peeling is the first operation performed after the yam tubers have been harvested and cleaned from debris. According to the different processing characteristics of users, different models can be provided to meet your requirements. Stainless steel body structure with high quality. Doing company’s yam peeling machine is sturdy and durable and it will increase the peeling efficiency and decrease percentage flesh loss.

yam flour production process

Yam peeling machine

The third step is crushing and milling:Yam flour hammer crusher is a device which use high speed rotating knife to break raw material into mush. The advantages of yam flour hammer crusher in the Yam flour production process: Big crushing ratio, strong production ability, uniform product size, less powder rate, low energy consumption, simple structure, light weight, easy operation and maintenance. The rotating parts are processed and with quality-adjusting treatment by the numerical control center. The toughness is higher.

The fourth step is yam slurry de-sanding and de-watering section: Yam slurry is pumped into the cyclone de-sanding machine. The impurities will be separated and collected into a container discharging. Then yam slurry is pumped into press de-watering machine to remove excess water to get the wet yam mash.

yam flour production process

Yam crushing machine-rasper

Then there is milling and sieving section:

a. Plate and frame filter presses are dewatering machines which utilize pressure to remove the liquid from a liquid-solid slurry. The solids remain in the void between the plates, until the plates discharge the filtered solids. It is fully automatic, the plate and frame filter press can be produced as your demand.

b. Flour vibrating sieve machine is designed as a high-precision screening machinery.

Main features of the flour vibrating sieve machine are: stainless steel wire, woven net is easy to clean and operate, low noise and energy consumption.

yam flour production process

Yam flour sieving machine

Here comes the drying section, the working system of airflow flash dryer for yam flour is the negative pressure. The system can effectively control the high standards of final product. The advantages of the airflow flash dryer are: easy operation and maintenance, energy conservation. The section is very important in the Yam flour production process because it is related to the formation of yam flour.

Last but not least, automatically packing system and control system will improve the work efficiency and meet different needs.

The African government has formulated preferential policies to promote the wide use of high quality yam flour in the food industry, and the era of yam flour production process has arrived.
