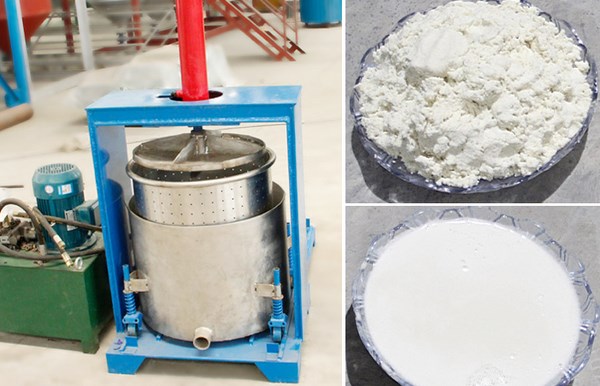

Hydraulic press machine

Hydraulic press machine is used for solid liquid separation of materials containing certain fibers, such as cassava raw material and potato. Cassava as raw material, it is originated in Brazil, widely cultivated in the tropical regions of the world. Cassava is mainly used for food, forage and industrial development. And 65% of the world’s cassava yield is used for human food. Now the cassava processing market is becoming larger, and more cassava flour and garri processing has appeared in Africa and other countries. Therefore, cassava flour and garri making equipment selection is also one of the important steps in the cassava processing. In the dewatering stage, hydraulic press machine can reach dehydration to the maximum, so that the finished products before screening are pure and high-class.

hydraulic press

Hydraulic press machine

Hydraulic press machine uses the system of hydraulic and reliable electronic controlling to directly squeeze the water of material and discharge out of charging barrel. In the process of garri and cassava flour making , the machine is going to remove component moisture. In order to ensure that the good quality of finished product, the hydraulic press machine is necessary and indispensable.

Doing Company hydraulic press machine technical parameters:

Model Capacity Diameter(mm) Power(kw) Pressure(Mpa)
DY-500 500-1000 500 3.0 ≤20

There is no spraying phenomenon in the hydraulic press machine, the working environment is good, the structure and the operation is simple. The machine with 2 belt type only needs one person operation. Its widely used in cassava dewatering process, and the garri production line.

We have been manufacturing a wide range of hydraulic press machine. The hydraulic press machine is easy to install and requires low maintenance. We develop the machine with the aid of latest technology so that the finished product conforms to set industry norms.

hydraulic press machine

Hydrucylic press machine

The working process of the hydraulic press machine is that the conveying screw will push the material into the press screw, in the beginning reduce the pitch of the screw and increase the diameter of the shaft, then squeeze out the liquid material contained in the material under the action of the sieve wall and the cone body resistance, and the extruded liquid is flowing out of the sieve hole and concentrated in the juice hopper. The cassava residue after the press is passed through. The end of the sieve tube and the cone are discharged from the machine, and the rear of the cone is equipped with a spring. By adjusting the pre tightening force and position of the spring of the hydraulic press machine, the row resistance and the size of the slag outlet can be changed to adjust the dry and wet degree of the press. The pressing force of the material is large and uniform, the cone body of the slag outlet is controlled by the hydraulic cylinder, adjusting the pressure can change the pressure effect on the material and adjust the dewatering rate. The machine can also be used to separate the solid and liquid of other materials. The effect is different because of the different material quality. The feeding box and sieve cylinder and screw of the hydraulic press machine are made of 304 stainless steel with high quality acid and alkali resistance.
