Cassava powder making line work flow

FAQ/ Chat online/ Leave a message/ December 27, 2024

Cassava powder can be used in the production of cakes and beverages. Because the commercial value of cassava flour is huge, people interested in cassava powder making business would like to know something about cassava powder making work flow. Generally, the work flow of cassava powder making line can be summarized as cleaning, processing and drying sections. Henan Jinrui next will introduce the details to you.

Section 1: cleaning

The first section in the cassava powder making line is cleaning, which consists of primary cleaning, washing and peeling parts. Main machinery in this section are dry sieve, paddle washer, and cassava peeler.

The dry sieve mainly screens out dirt, sand and other impurities on the surface of cassava by rapid rotation and friction between the cassava and the side wall of the dry sieve.

cassava powder processing machineDry sieve

After sieving, next machine used is the paddle washing machine, which adopt countercurrent washing principle to eliminate sand and mud. By the effect of paddle rotating, raw material flows in the converse direction against water current, which makes washing completely.

cassava flour making machinePaddle washing machine

Cassava peeling machine in the cassava powder making line will be used to remove two layers of cassava tuber. The peeling machine provided by Henan Jinrui adopts sand roller design, which can achieve a high peeling rate of 95%. In addition, the peeling machine equipped with water spray system has a better peeling and washing effect.

cassava powder processing equipmentPeeling machine

Section 2: processing

cassava flour making lineCutting machine

The second one is processing section, which plays an crucial role in cassava powder making line. It can be subdivided into cutting,grating and dewatering parts. List of main machinery in this section is cassava cutter, cassava grater,and plate-frame filter press.

In the complete cassava powder making line, the cutting machine is used for crushing of raw material. After cutting the cassava into small pieces, the raper will be used for grating the cassava pieces into cassava mash. The rasper produced by Henan Jinrui company cooperates with the international advanced technology, which achieves 98% cassava crushing rate. The machine features the high rasping coefficient and adopts bidirectional rasper, which achieves a high extraction rate.

cassava processing machineRasper

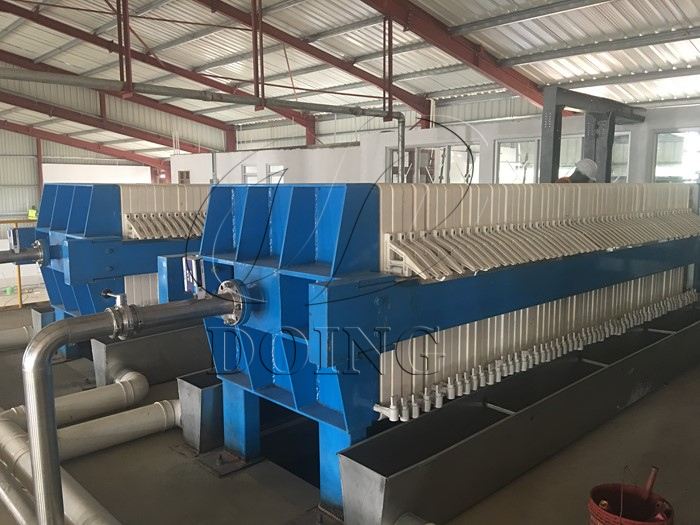

After being ground, a plate-frame filter press, an effective dewatering equipment in the complete cassava powder making line will be used to remove the excessive water. Designed with integration of mechanical drive, electricity and hydraulic pressure, the presser is can realize automatic pressing, filtering, draining, squeezing and lossening. The moisture content of cassava mash treated by Henan Jinrui’s filter press can reach 40%.

cassava powder production linePlate-frame filter press

Section 3: drying

cassava flour making machineFlash dryer

Last but not least,drying section of cassava powder making line ensures the final quality of flour.The section covers drying, sieving and packing processes.And main equipment configured in this section is flash dryer, sifter sieve, and packing machine.

For high quality cassava flour, the requirements for the water content of cassava flour are relatively strict, so drying is the important work flow in cassava powder making line. Henan Jinrui’s flash dryer uses negative pressure that effectively controls the loss of flour and ensures the cleanliness of the factory. Meantime, the pipeline adopts a pulse tube design, which combines coarse and fine, reduces the speed of cassava flour passing through, prolongs the flour residence time, and ensures the drying effect. The water content of cassava flour coming out of the flash dryer is about 12%.

cassava powder making plantSifter sieve

After drying, we can get cassava flour, but in order to ensure the quality, we will add a sifter sieve to screen large fiber from the cassava flour. Henan Jinrui company uses a 10-level sifter sieve with a longer screening process to achieve cooling of the material. At the same time, each level uses a different mesh size, which is not easy to get clogged.

cassava processing machinePackaging machine

The sieved cassava flour finally enters the packaging stage to facilitate the sale and storage of cassava flour. Generally speaking, the complete cassava powder making line is equipped with packaging machine. Henan Jinrui also provides the automatic packaging machine, which can automatically pack cassava flour according to the set weight.

That’s the introduction to the work flow of cassava powder making line. If you want to learn more about the cassava powder making line and related machinery configuration, you can leave us a message or visit our factory. Henan Jinrui company, having 13 years experience of providing the professional cassava processing machines, has confidence to offer you the best solution!
