Cassava chipping machine used in flour production

Date:Jan 11, 2018/ Cassava machinery/ Chat online/ Give me a price

Factory direct sale contact number

cassava chipping machine

Cassava chipping machine

As for cassava flour production, there are two methods adopted: wet processing method and dry processing method. Cassava chipping machine could be used in dry processing method for flour production.

What are the procedures for dry cassava flour production method?

Cassava roots peeling -- cassava chipping (here use cassava chipping machine) -- cassava chips drying -- grinding -- sieving -- final product bagging

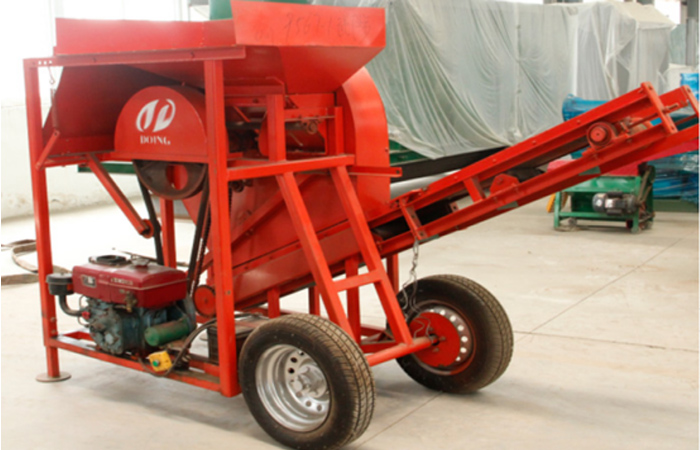

The cassava chipping machine is combined by drum-type peeler and cassava chipping machine. When run the machine, cassava roots would be peeled in drum-type peeler, then peeled cassava would be transferred to the cassava chipping machine by belt conveyor and then chipped into pieces, with thickness between 0.8-2cm.

Cassava chipping machine chart flow

Main technical parameters of cassava chipping machine:

Model	Peeler	Chipper
Weight	945 kg	550 kg
Power	5.67 kw / 5 kw	5.67 kw / 4 kw
Roller(L*D)	Ф850×3500mm	*
Cutter Disc	*	Ф1000mm
Size	410012001550mm	130015001500
Capacity	3 t/h	3 t/h

cassava chipping machine

Cassava chipping machine

After processed by cassava chipping machine, cassava chips would be dried in cassava chips dryer ,then dried cassava chips is grated into cassava flour. The whole procedures above is the dry processing method of cassava flour production.
